This 1972 budget modern house needed a tune-up. In the process of replacing the windows & siding, adding insulation, replacing the double level deck, and adding exterior window shades and a bright red-orange awning on the NW & SW sides, we also rearranged things and made the floor plan work better. That was the most satisfying part of the project, but it is hard to show it in photographs. Type “Navellier” in the search box to the right for photos of the process.

before for blog

Here are some photos after construction:

Approaching the house

Approaching the house

isabel 048

New entry door and porch

isabel 040brightx2

isabel 006

Exterior window shades and awning (retracted) and fibercement siding installed as a rainscreen

Redwood and stainless steel railing

Guillaume and Freddy under the bright red awning

Guillaume and Freddy under the bright red awning

Read Full Post »

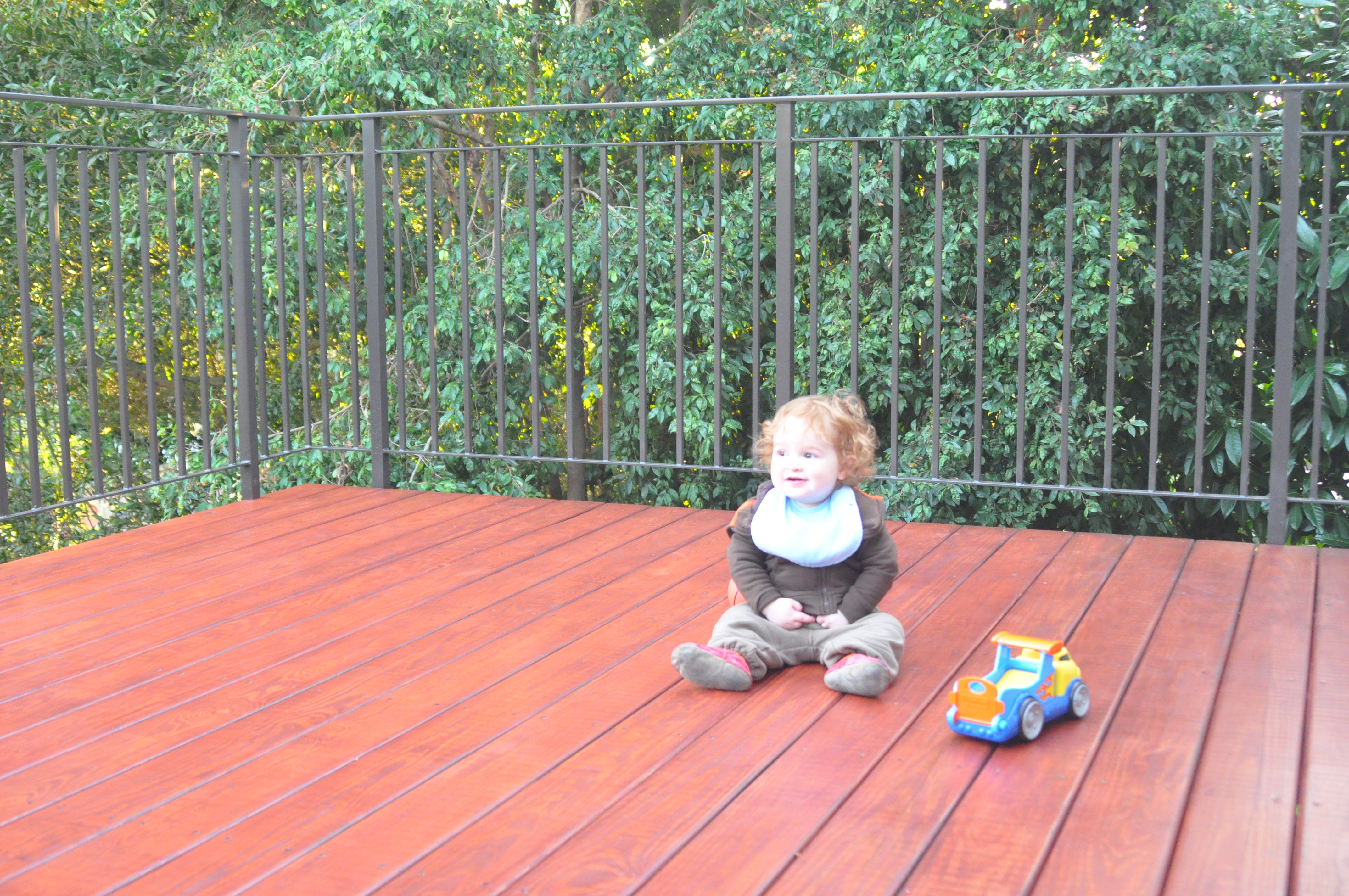

My client in El Cerrito is enjoying his new deck!

Read Full Post »

Read Full Post »

Pastis and Cognac are happy that their owners kept one clear pane for them

Read Full Post »

The front door was installed yesterday.  Now we are working out the trim details.  (Ignore the blue painters tape please)

We decided to make the fir continue all the way to the ceiling and the corner for simplicity   Having a sliver of white to the right of the door and a wider sliver above would have diminished the installation.   I admit some influence by the intersecting planes of  Gerrit Rietveld’s  Schröder House

Read Full Post »

Read Full Post »

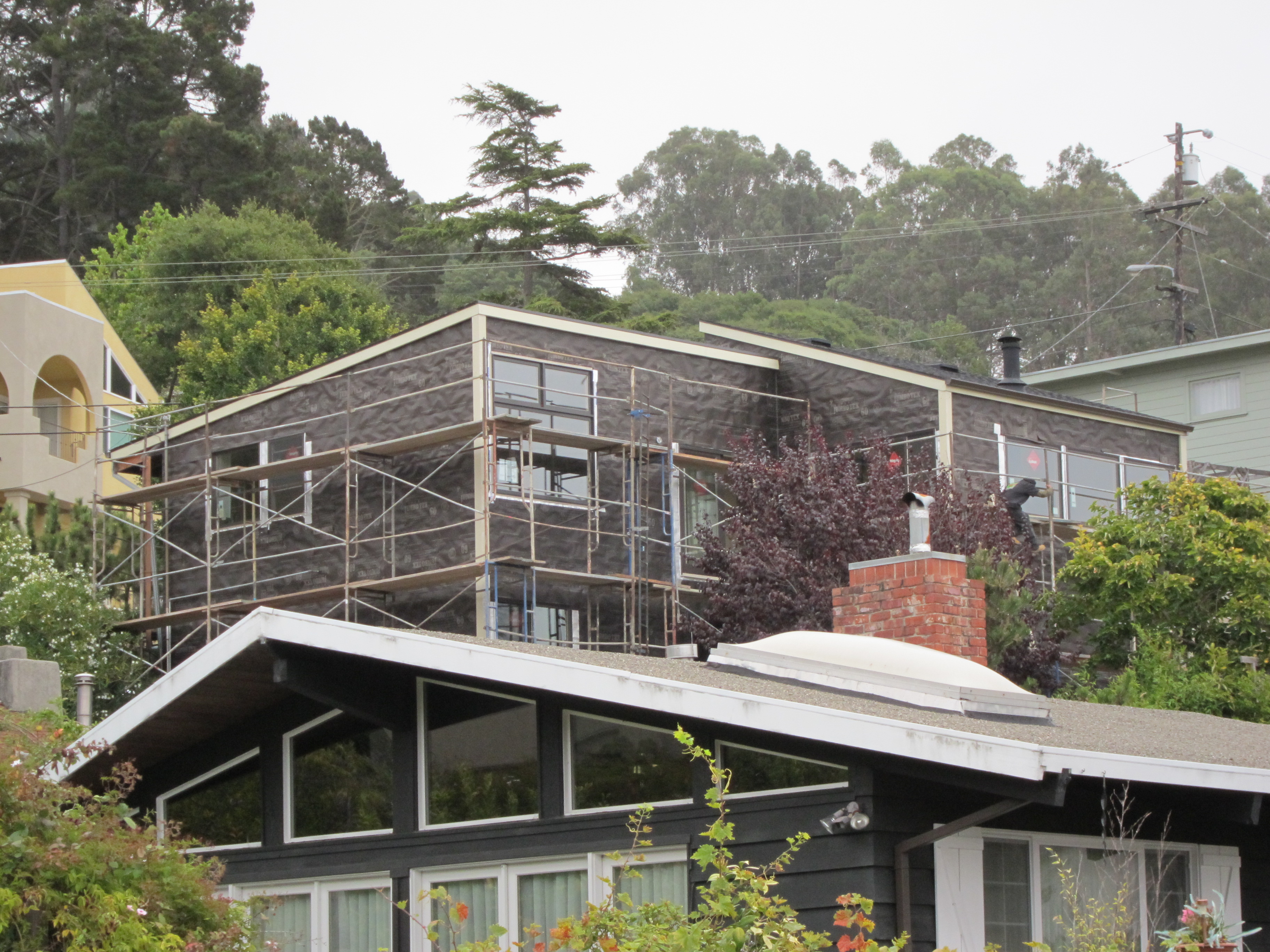

It is hard to get good pictures of the rainscreen assembly, but here are a few courtesy of Mr. Canivet.

This slideshow requires JavaScript.

The point of the rainscreen is to allow air to circulate behind the siding and dry out the backside.  This way the moisture doesn’t instead get sucked inwards into the insulation and stud bays and the paper-backed sheet rock when you turn on your industrial kitchen hood. This can cause all sorts of problems.  It also just keeps the moisture from lurking behind the siding.

The siding is 5/8″ thick fibercement lap siding. the furring is 1.5″x5/16″ cedar strips, and the drainage plane is good old-fashioned 2-ply building paper.  In order to keep insects from building nests behind the siding Guillaume came up with a simple detail using wire mesh and filter fabric at the top and bottom and above and below each window.

Read Full Post »

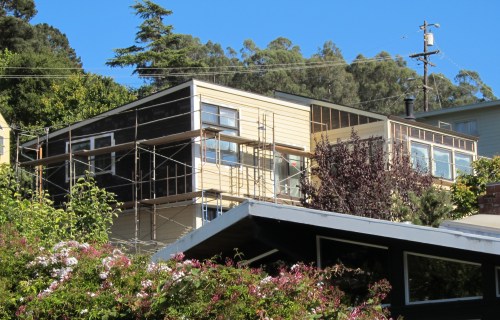

You can see the big new dining room windows and to the right three new bigger windows in the living room looking at the view. These windows face SW and will have exterior shades on them.

Read Full Post »

We (deedsdesign & Canivet Construction) have just started work on this exciting face lift and energy efficiency update in the El Cerrito Hills!

Tight budget 1972 modernism would probably be the best description of this house. It has an open floor plan, vaulted ceilings with clerestory windows and sweeping views of the bay.  Many of  the single pane aluminum windows are  such random sizes that it seems likely that the owner might have bought them for cheap somewhere (long before Craigslist) and made them fit into the design.  As is common in the east bay hills, the house has a lot of west-facing glass to take advantage of the views.  All this glass is problematic because it means that a lot of direct afternoon and evening sun blasts the living spaces.

So,  as well as replacing the aged siding with a rain screen, adding shear strength, replacing all the  windows and doors with new insulated units, rearranging and resizing many of them, replacing and slightly modifying the double-deck, adding a hot tub (!!!) and  insulating with blown-in cellulose, we are adding some exterior window shades to moderate that afternoon sun.

European Rolling Shutters  (http://www.ers-shading.com/) is providing the shades and a nice red-orange retractable awning for the deck.

Stay posted as the project evolves!
