This project was completed a a few years ago, but I realized I never posted any finished photos because I was waiting for the landscaping and an interior sliding screen between office and living room. I think it’s done now and I hope to stop by soon to see it.

John and I both would love to build more strawbale structures. The thick walls (In this case 24″ thick, but 18″ is common) are really great architecturally and the inside is so quiet and well insulated. It is wonderful to use a natural material that is an agricultural waste product to insulate. Lime plastered strawbale buildings are also very fire resistant.

This photo shows the builder, John McBride & the construction of the curved walls at the doors
A fun, colorful cabinet for books and entertainment system and the deep window seat to the right (needs it cushion still) You can see the finished curves at the doorway to left.
office window and desk built into the thick walls
Windows on the south side with concrete sills, golden lime plaster, and bright painted soffits I (& some AI ) added the garden in the foreground because this photo was taken before landscaping.)
no AI on the garden here 🙂
deep bathroom window
Tilework (Fireclay) and skylight (some temp plumbing that doesn’t match 🙂 for the observant. Plaster in the bathroom is clay plaster because of its humidity control and air cleaning properties.
Kitchenette – If I was an interior decorator I’d add a piece of art and declutter the counter a bit and Martha Stewart the corner shelves, but this is just a snap shot) Now, in Berkeley, a bigger refrigerator is required.

This is a screenshot from the concept model showing the windowseat and office, storage hallway, & bathroom
another screenshot from the concept model

Read Full Post »

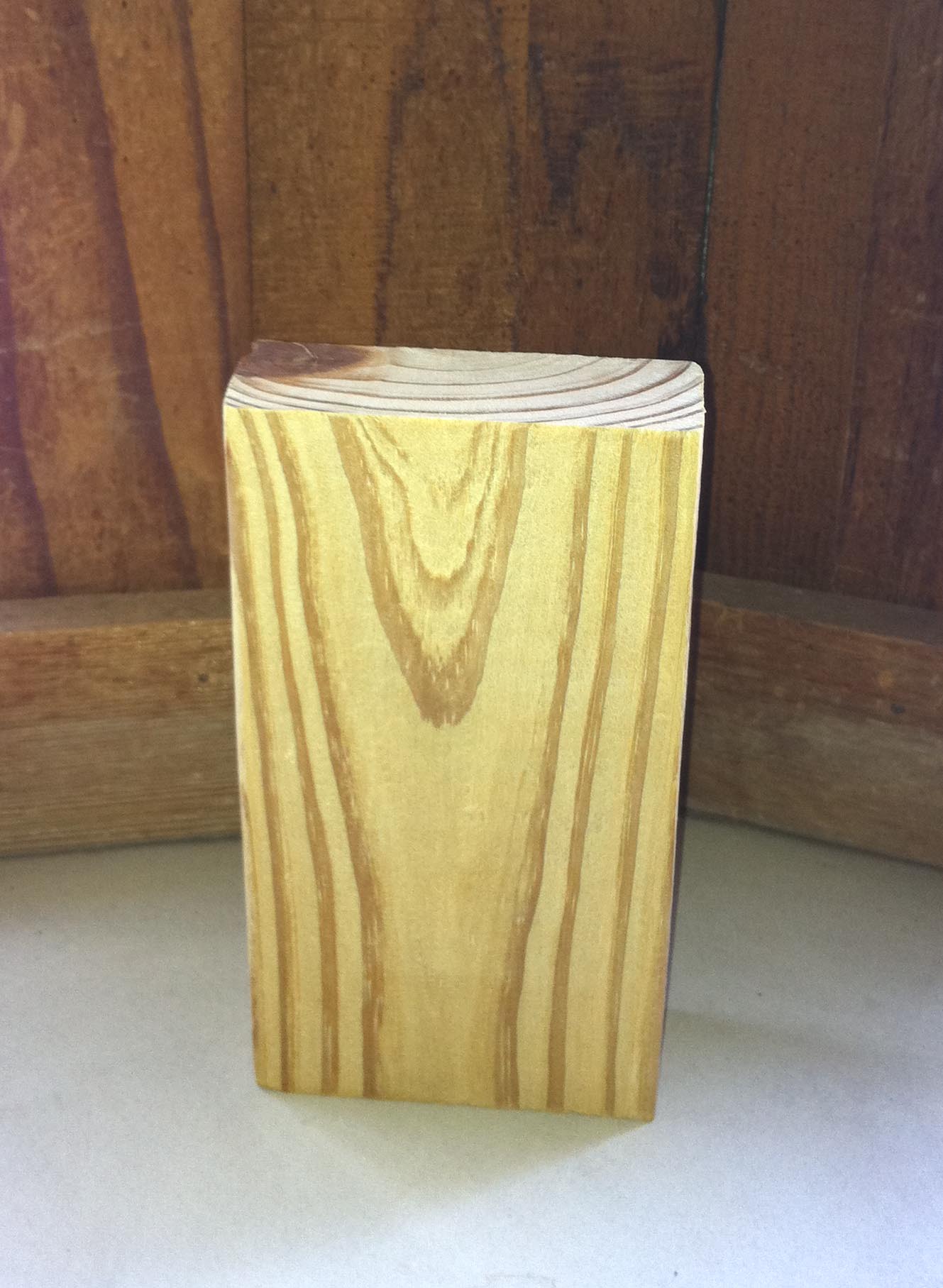

Timbersil decking

Timbersil Framing

Adolfo (Ron Tostenson Construction) was sanding the decking smooth before staining when I stopped by. The framing and the decking are all glass impregnated wood by TimberSIL and extremely fire and rot resistant. (more info here) Its looking good – much better than pressure treated from below, and the decking is nice too.

Read Full Post »

I have been searching for a material for building decks that meets the most rigorous requirements of the wildfire interface zones. I found a new product called TimberSIL that seems to fit the bill and more.  The product literature makes some big claims:

TimberSIL utilizes recycled non-toxic water glass, extracted from rice hulls (an abundant waste product) to surround and protect the wood fiber. TimberSIL wood is unrecognizable as food source for insects, protected from flame and resists rot. The glass extraction process is so heat intensive that it creates more energy than it uses (Energy positive).”

BuildingGreen.com has given the material great reviews,  and they explain the energy positive claims a bit:

“Timber Treatment Technologies switched entirely to this waste agricultural source of sodium silicate about a year ago.  The sodium silicate the company uses in its treatment process is derived 100% from burning rice hulls. Rice hulls have a high silica content–up to about 60%–and this silica is extracted in a gasification process in which the hulls are heated to produce three products: hydrogen (which is burned to generate electricity), carbon (used in making activated carbon for filters), and amorphous sodium silicate. ”

This is a relatively new and unproven product as of yet, but it seems like a good one to try.  The TimberSIL installation manual provides a lot of helpful tips.  I think only southern yellow pine is available now, but perhaps it will expand to other species and maybe they can switch to FSC certified wood as well.
